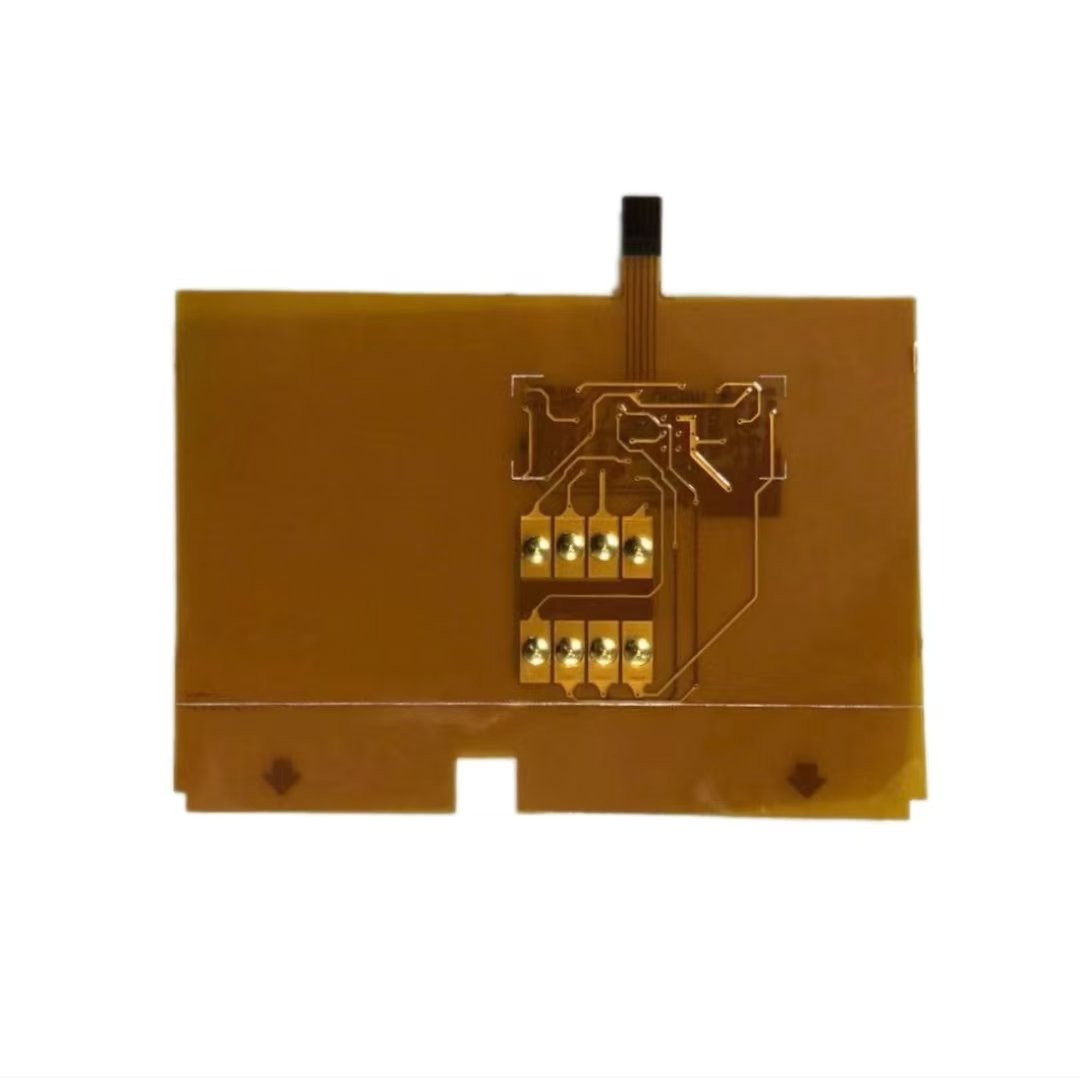

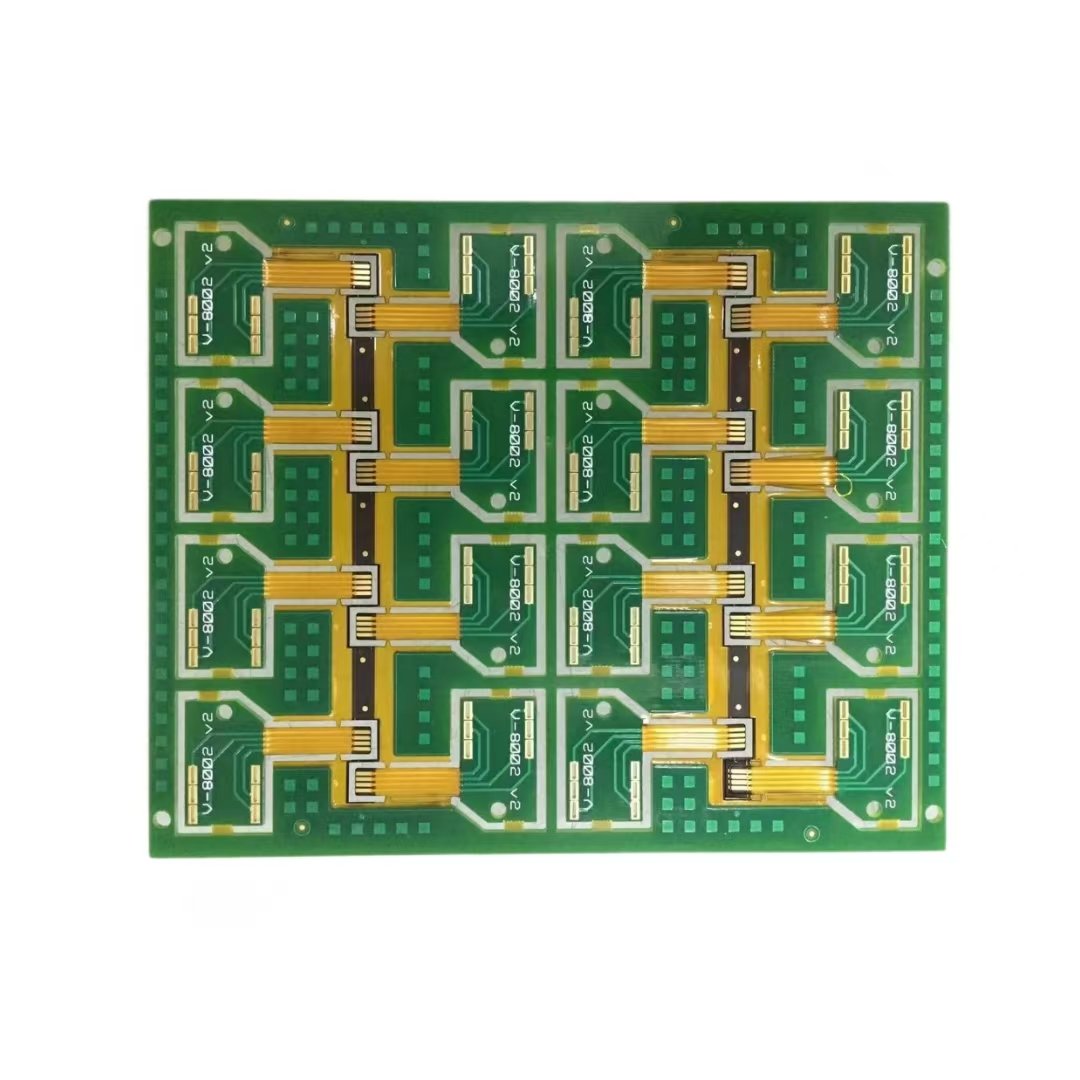

Topright flexible PCB Capability :
| Item | Manufacture Capability |
| Material | Polyimide / Polyester |
| Counts | Flex: 1~6 layers |
| Board Thickness | Min.0.05mm |
| Copper Thickness | 1/3 oz — 2 oz |
| CNC Drill Size (Max) | 6.5mm |
| CNC Drill Size (Min) | Flex: 0.15mm |
| Holes Location Tolerance | ±0.05mm |
| Coverlay Drill Size (Min) | 0.6mm |
| Hole to Coverlay Opening Windows (Min) | 0.15mm |
| Min Line Width / Spacing | 0.075/0.075mm |
| Aspect Ratio | 6∶1 |
| Copper Thickness on Hole Wall | Flex:12-22μm |
| Min Pad Size | φ0.2mm |
| Etch Tolerance | Finished line width tolerance ±20% |
| Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
| Coverlay Registration Tolerance | ±0.15mm |
| Solder Mask Registration Tolerance | ±0.2mm |
| Solder Mask to PAD | Non photosensitive: 0.2mm |
| Photosensitive: 0.1mm | |
| Min. Solder Mask Dam | 0.1mm |
| Misregistration Tolerance for Stiffener, Adhesive, Glue paper | ±0.30mm |
| Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |
FAQ :
Q1: What’s your minimum order quantity?
A1: We have no MOQ ,1pcs is welcomed.
Q2: What file we should offer?
A2: PCB:Gerber file is better, ( Protel, power pcb, PADs file),
PCBA : Gerber file and BOM list.
Q3: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q4: What any other information should be offered except for file?
A4:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q5:I am very satisfied after I read your information, how can I start to purchase my order?
A5: You could send your file to requirements to our email : sales@toprightpcb.com
Q6 : What’s your payment type ?
A6 : TT , Western Union , Paypal , Alipay etc
Q7: What is delivery terms and time?
A7: We usually use FOB terms and ship the PCBs in 5-15 workdays depending on your order quantity.
Q8: What is your packaging and shipment type ?
A8:
